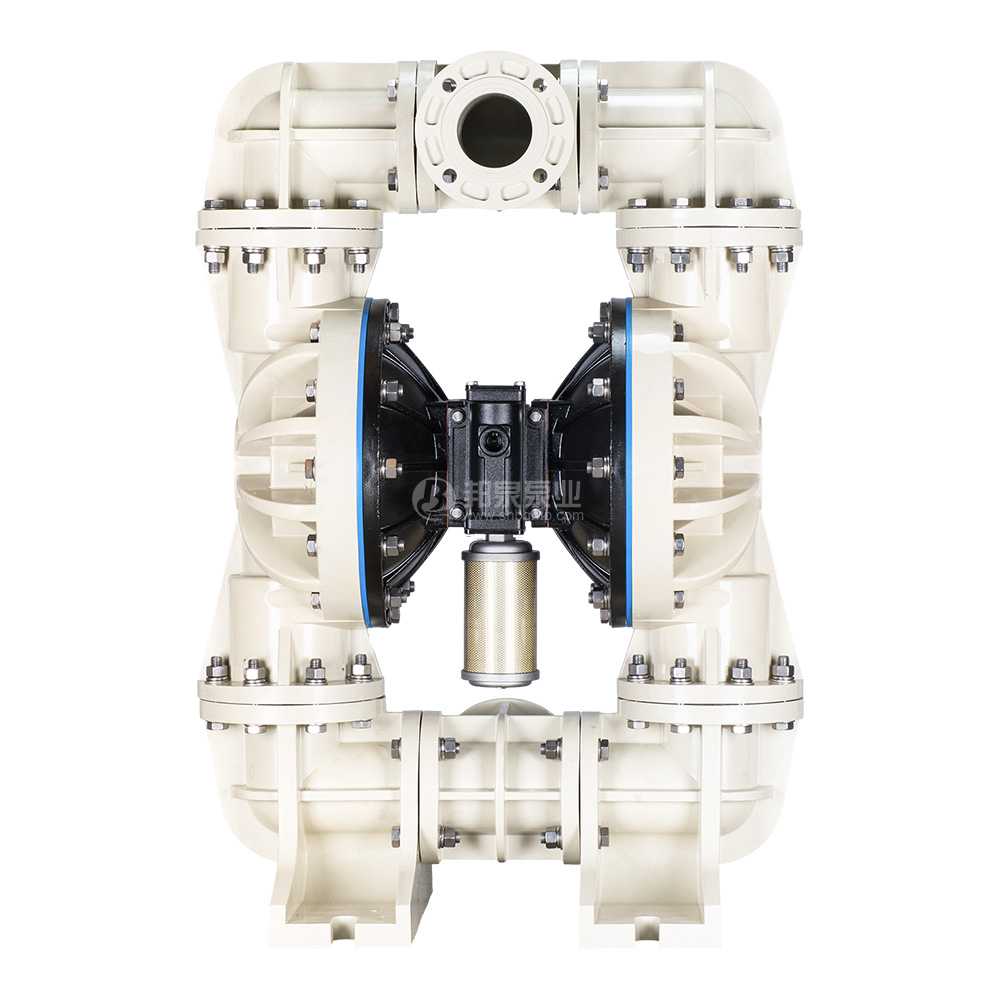

Skylink斯凱力氣動隔膜泵 3寸塑料特氟龍隔膜泵PS80,PP-AT-T/S-PP-TT-0F

PS80 Fluid Space Part Package  流體備件包

Part Package備件包

Part Number零件編號

Description描述

Quantity數(shù)量

3"Neoprene fluid spare part package

3寸氯丁橡膠流體備件包

0080.0152

3" Neoprene Valve Ball  3寸氯丁橡膠閥球

4

3" Neoprene Diaphragm  3寸氯丁橡膠膜片

2

3" Neoprene Valve Seat  3寸氯丁橡膠球座

4

3"Teflon/Santoprene fluid spare part package

3寸特氟龍/三道橡膠流體備件包

3"Teflon/Neoprene fluid spare part package

3寸特氟龍/氯丁橡膠流體備件包

0080.0184

0080.0124

3" PTFE Valve Ball  3寸特氟龍閥球

4

3" PTFE Diaphragm  3寸特氟龍膜片

2

3" Santoprene Diaphragm  3寸三道橡膠膜片

2

3" PTFE Valve Seat 3寸特氟龍球座

4

3" PTFE Valve Ball  3寸特氟龍閥球

4

3" PTFE Diaphragm  3寸特氟龍膜片

2

3" Neoprene Diaphragm  3寸氯丁橡膠膜片

2

3" PTFE Valve Seat  3寸特氟龍球座

4

3"Santoprene fluid spare part package

3寸三道橡膠流體備件包

0080.0158

3" Santoprene Valve Ball  3寸三道橡膠閥球

4

3" Santoprene Diaphragm  3寸三道橡膠膜片

2

3" Santoprene Valve Seat  3寸三道橡膠球座

4

PS80 Air Spare Part Package  空氣備件包

3"Air spare part package

3寸空氣備件包

1080.0003

External "O" ring of 1.5-3"main valve 1.5-3寸主氣閥外層O型圈

"O" ring of 3"main shaft  3寸中間軸O型圈

6

2

"O" ring of 1.5"-3"pilot shaft   1.5-3寸導(dǎo)向閥閥套O型圈

4

Piston  1.5-3寸活塞組件

1

Spool Assembly  1.5-3寸主氣閥滑閥芯閥套

1

Gsaket.cap  1.5-3寸導(dǎo)向閥密封墊片

1

Main Gasket.cap  1.5-3寸主氣閥密封墊片

1
